For the first use, you need to charge the powerbank for one hour, otherwise the battery will be protected and the wireless charging will be automatically disconnected.
Place the phone on its side and press the side button of the product

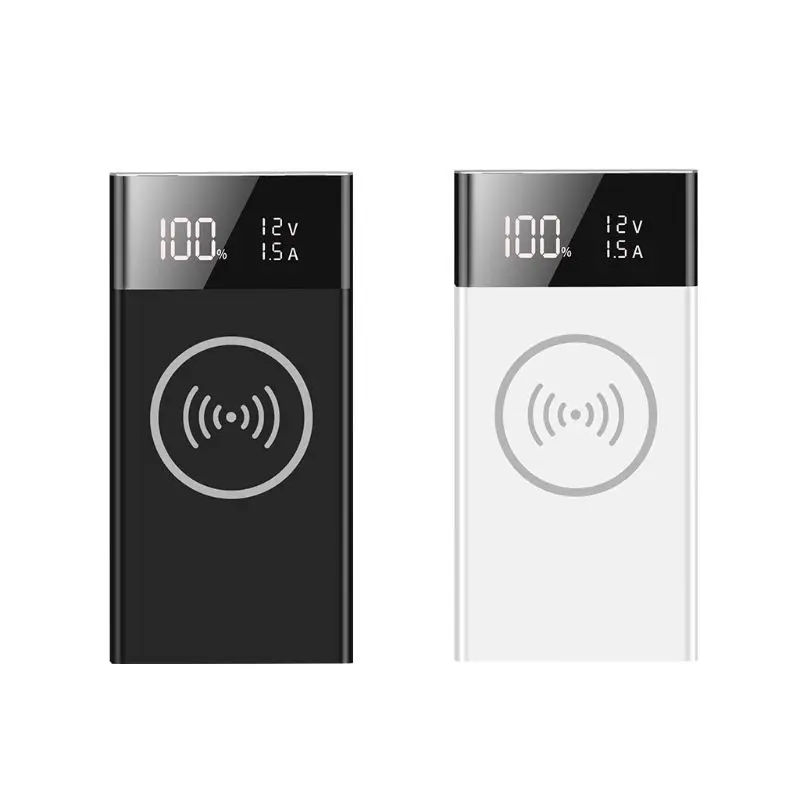

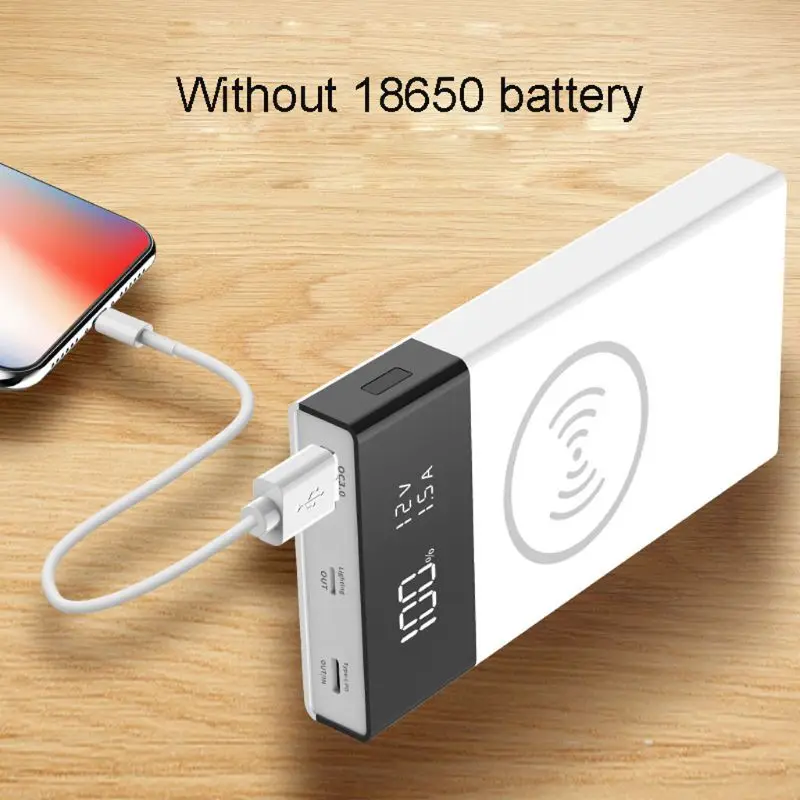

6x 18650 Battery DIY Qi Wireless Charger QC3.0 USB Type C PD Power Bank Box Case Without Battery
100% brand new and high quality.
3in1 design,QC3.0 USB output,Type C PD output,Qi Wireless Charger for Mobile Phone Tablet
Need to use your own 18650 batteries,Need to use the new 18650 battery of the same capacity and model, can not use different brands of batteries
Fast Charging: With a quick QC 3.0 port, it enables you to get a quick top off on your QC 3.0-enabled mobile phones.
QC3.0 USB and Type C cannot output fast charge at the same time. When two phones are plugged into the phone at the same time, only 5V can be output at the same time. Only when using one USB interface output, QC 3.0 output is available.
Please install the battery and close the cover. After closing the cover, it will not open.
18650 Battery is included, Only Power Bank Case.
When installing the battery, pay attention to the positive and negative poles, and install the reverse battery to short circuit.
1. Any port single port output supports fast charge, multi-port output 5V3A (MAX) integrated QC2.0/QC3.0 output fast charge protocol QC3.0 Qualcomm certificate number: 47808056908-2 Integrated FCP input / output fast charge protocol integration AFC input/output fast charge protocol integrated SFCP input/output fast charge protocol integrated MTK PE+ 1.1&2.0 output fast charge protocol integrated USB C DRP protocol, support input and output fast charge compatible with BC1.2.
2. Integrated USB Power Delivery (PD2.0/PD3.0) protocol supports PD2.0 bidirectional input/output protocol supports PD3.0 input/output, PPS output protocol supports 5V, 9V, 12V voltage gear input/output PPS support 5~11V, 20mV/step Output Voltage Position Integrated Hardware Bidirectional Tag Encoding and Decoding (BMC) Protocol Integration Physical Layer Protocol (PHY) Integrated Hardware CRC supports Hard Reset.
Item Type: 18650 Li-ion Battery Charger Box
Type C Input & Output: 5V 3A,9V 2A,12V 1.5A
8pin Input: 5V 2.1A
USB Output: 5V 3A,9V 2A,12V 1.5A
Wireless charger: 5W
Battery: 6pcs 18650 lithium battery (Not included)
Quantity: 1 PC (other accessories demo in the picture is not included)
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
1 X DIY QC 3.0 Power Bank Box(18650 batteries are not included)
